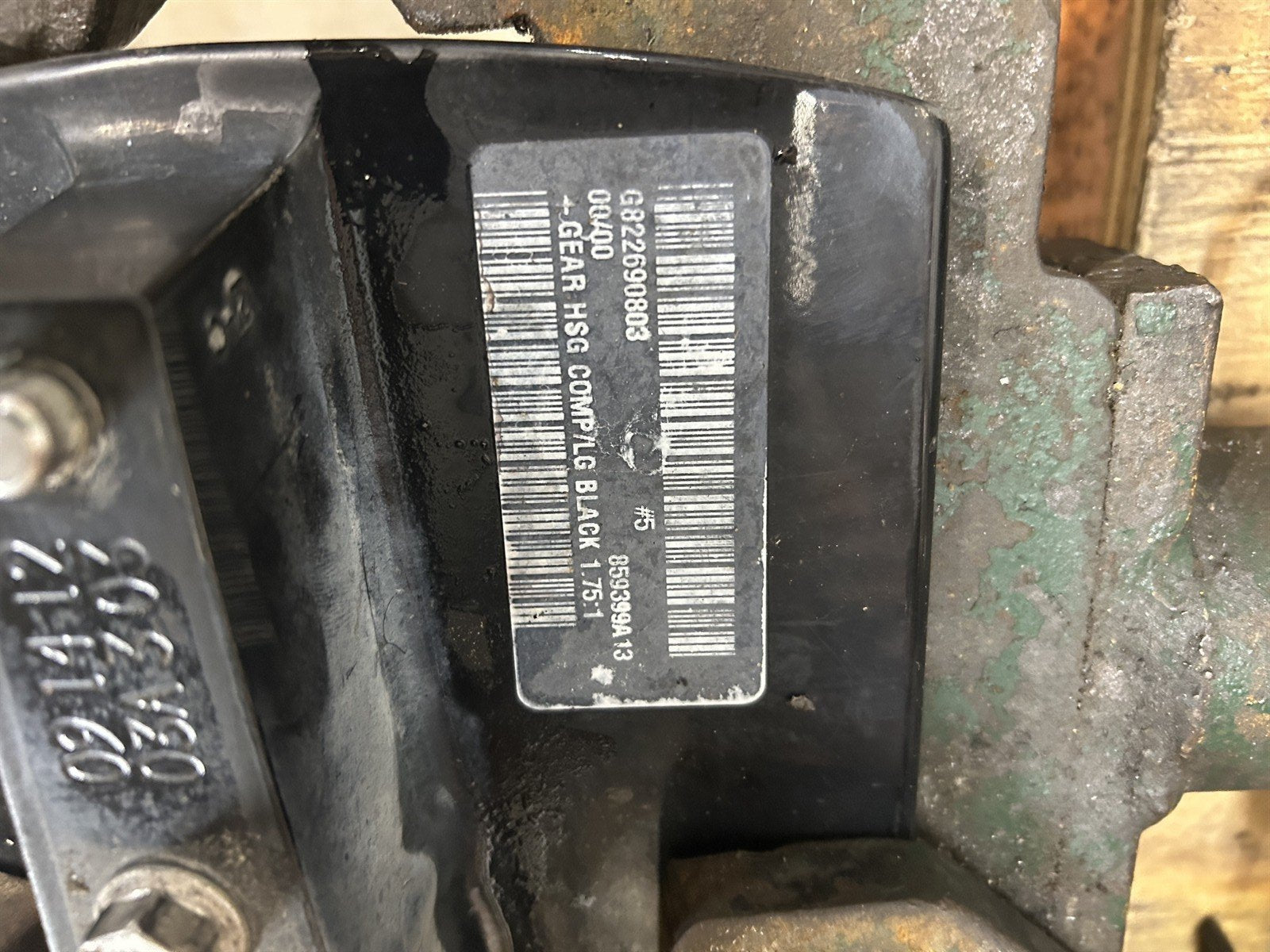

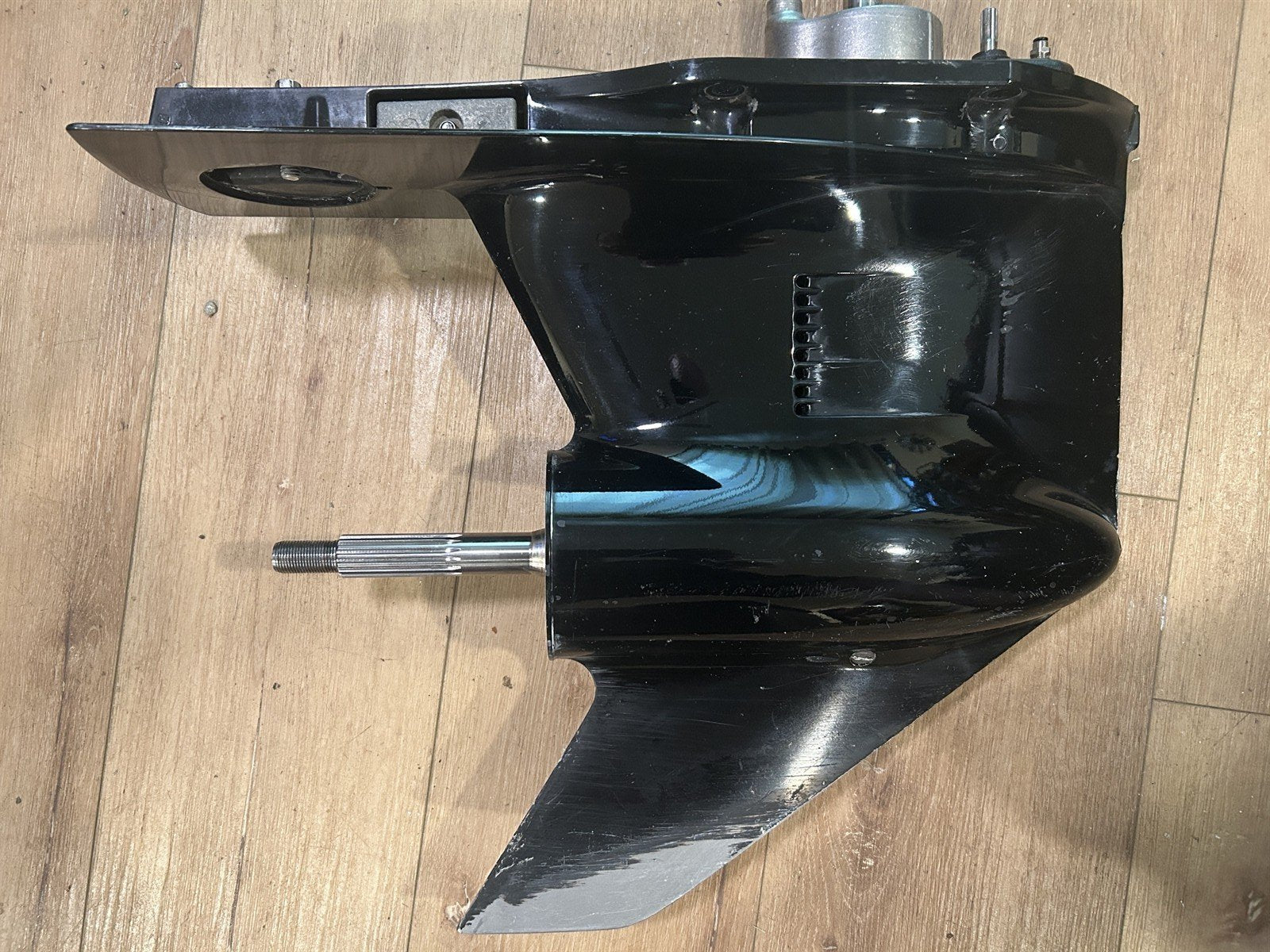

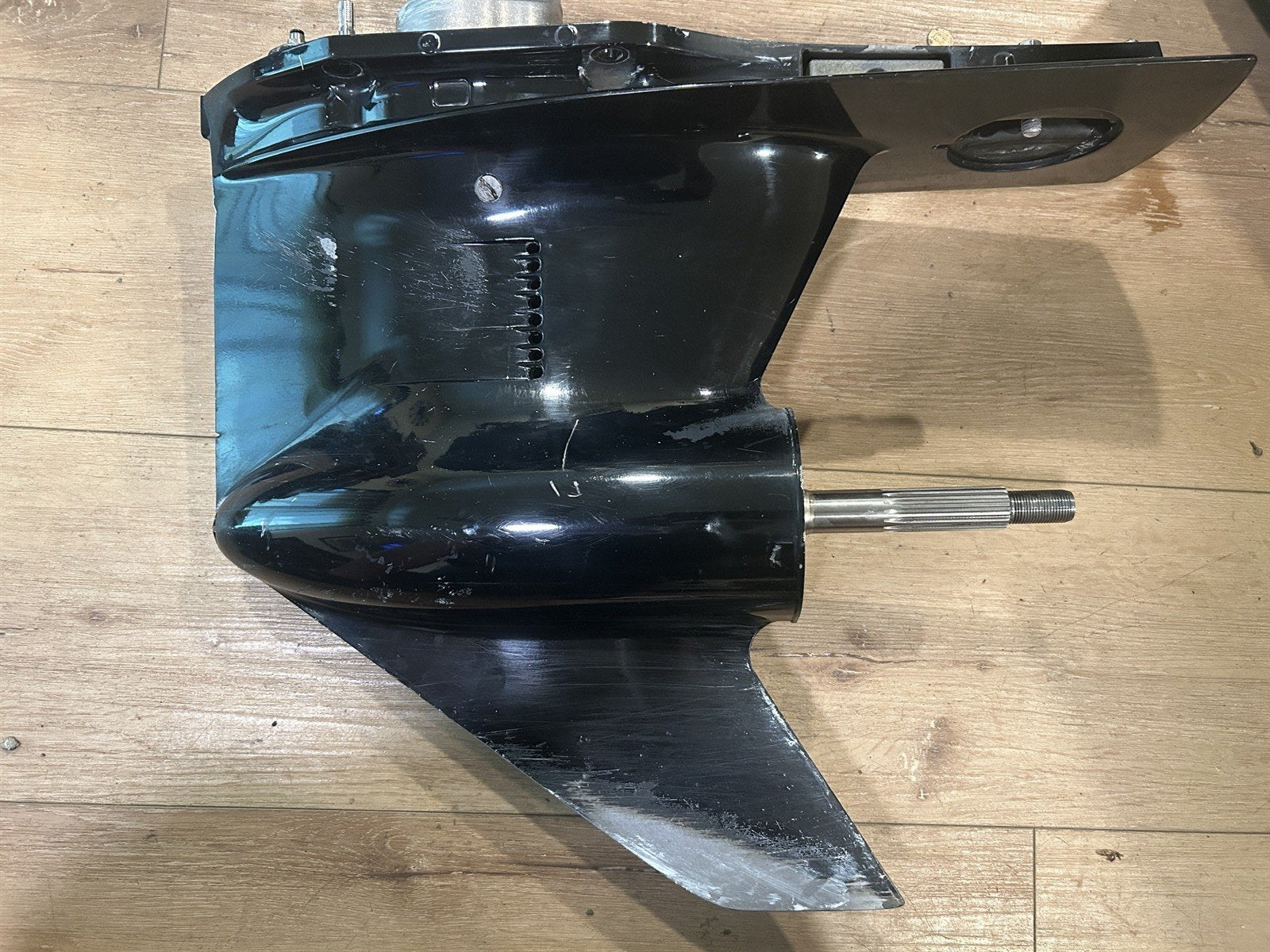

This gearcase still had the factory part number bar code on it. It identifies this gearcase as 859399A13 1.75:1 GEAR HOUSING ASSEMBLY Complete (4.75 Inch/120.65 mm Torpedo Diameter) Gear case was well maintained and working perfectly when the power head failed. This is original factory paint.

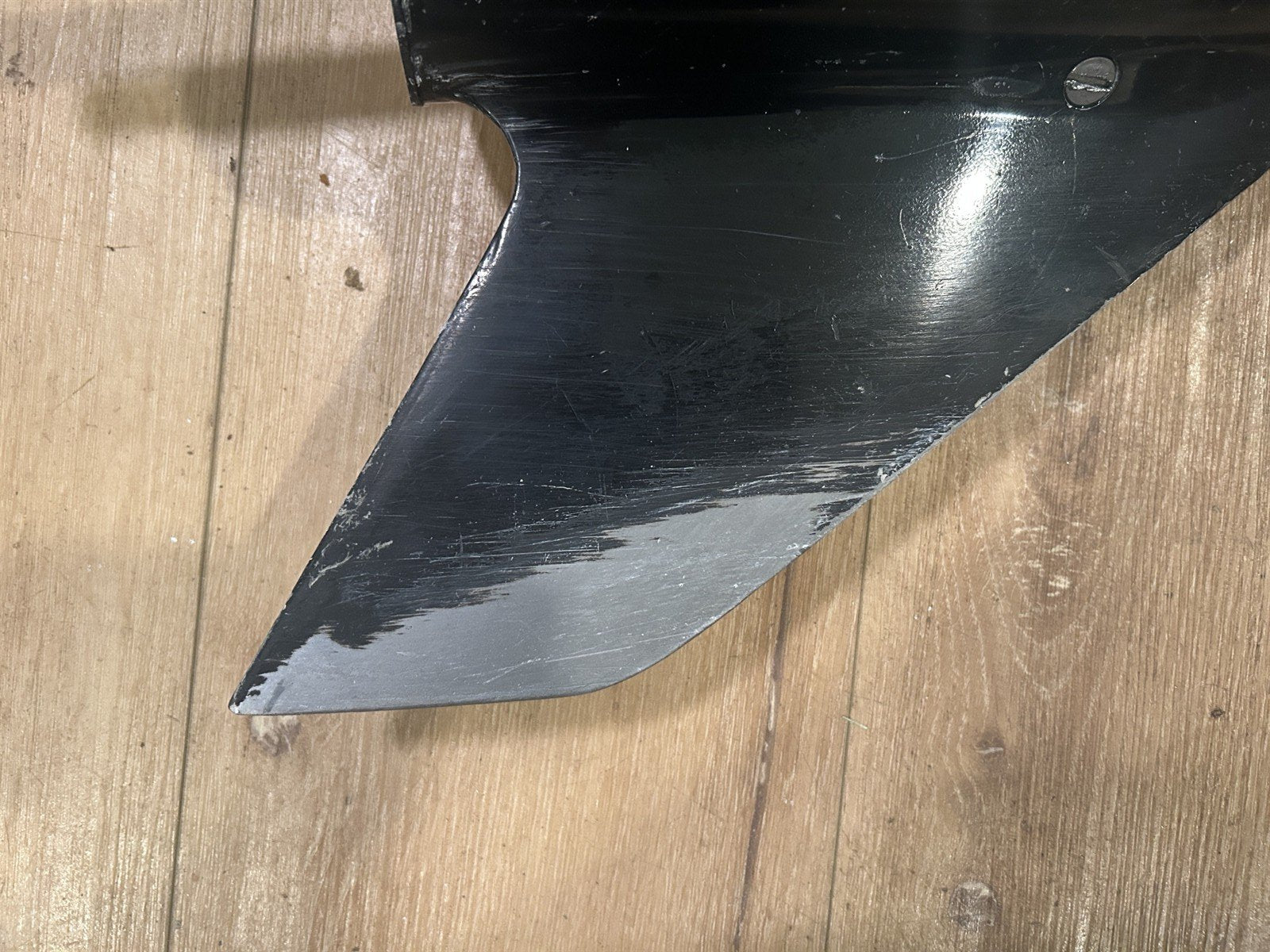

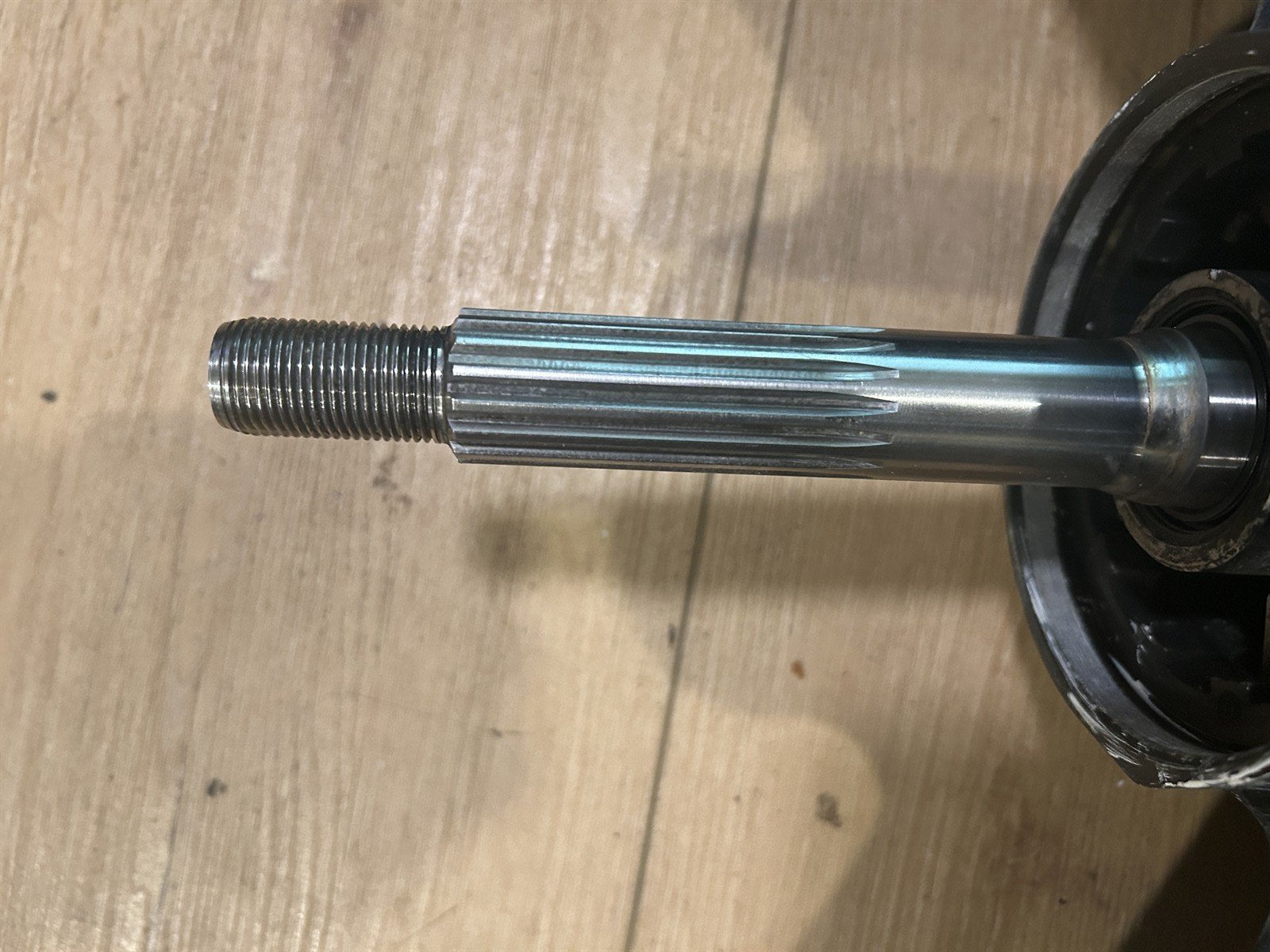

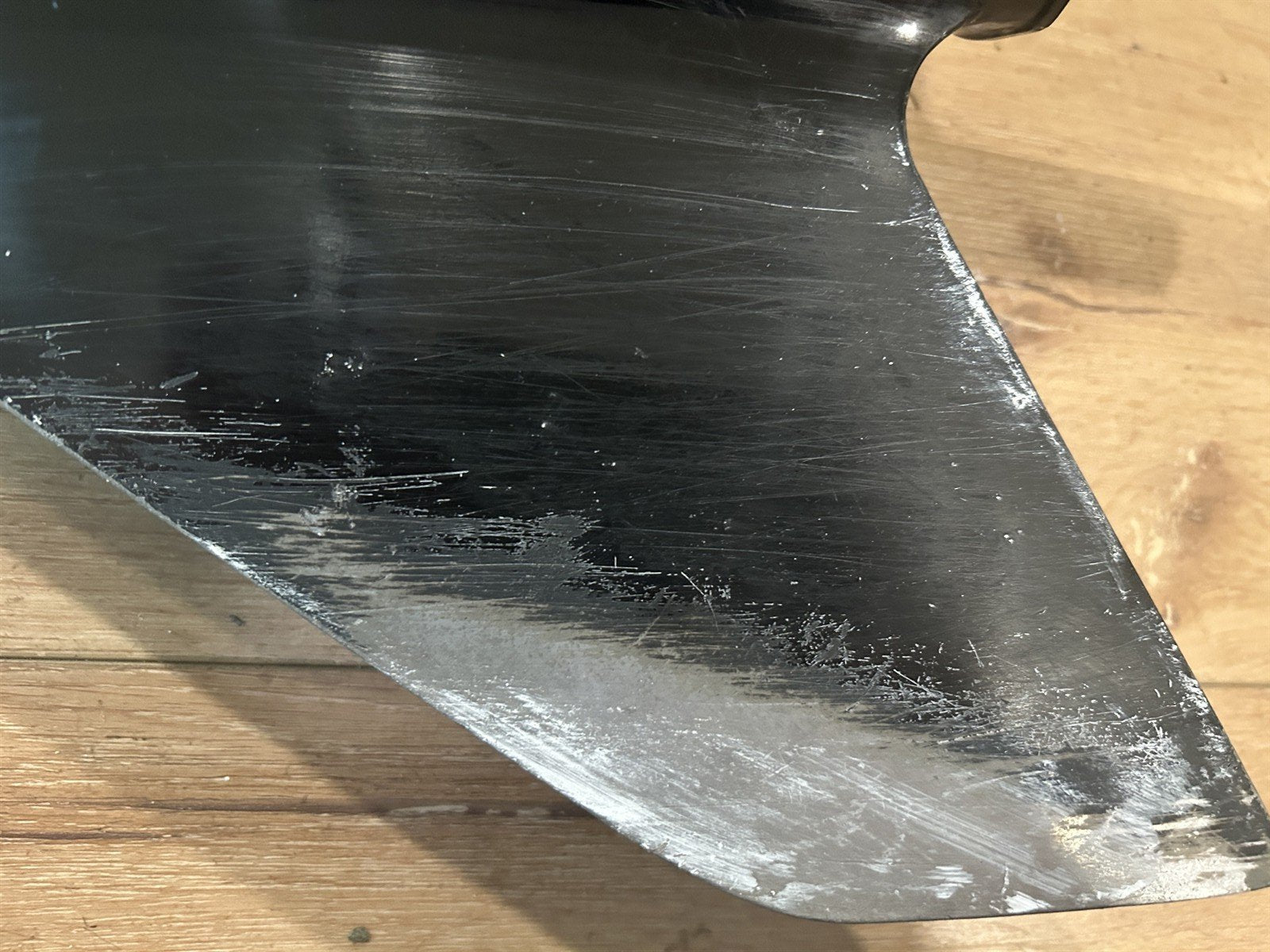

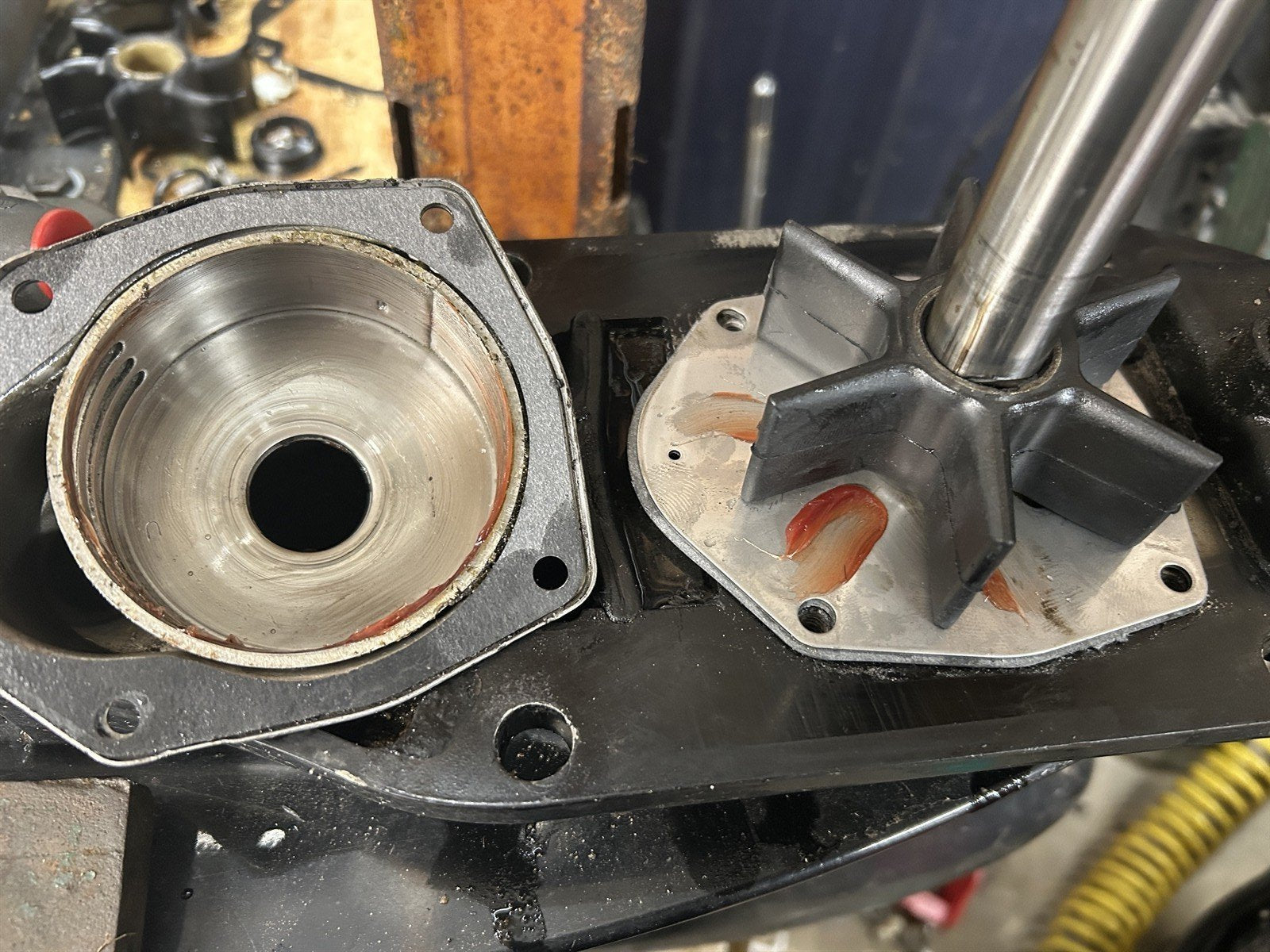

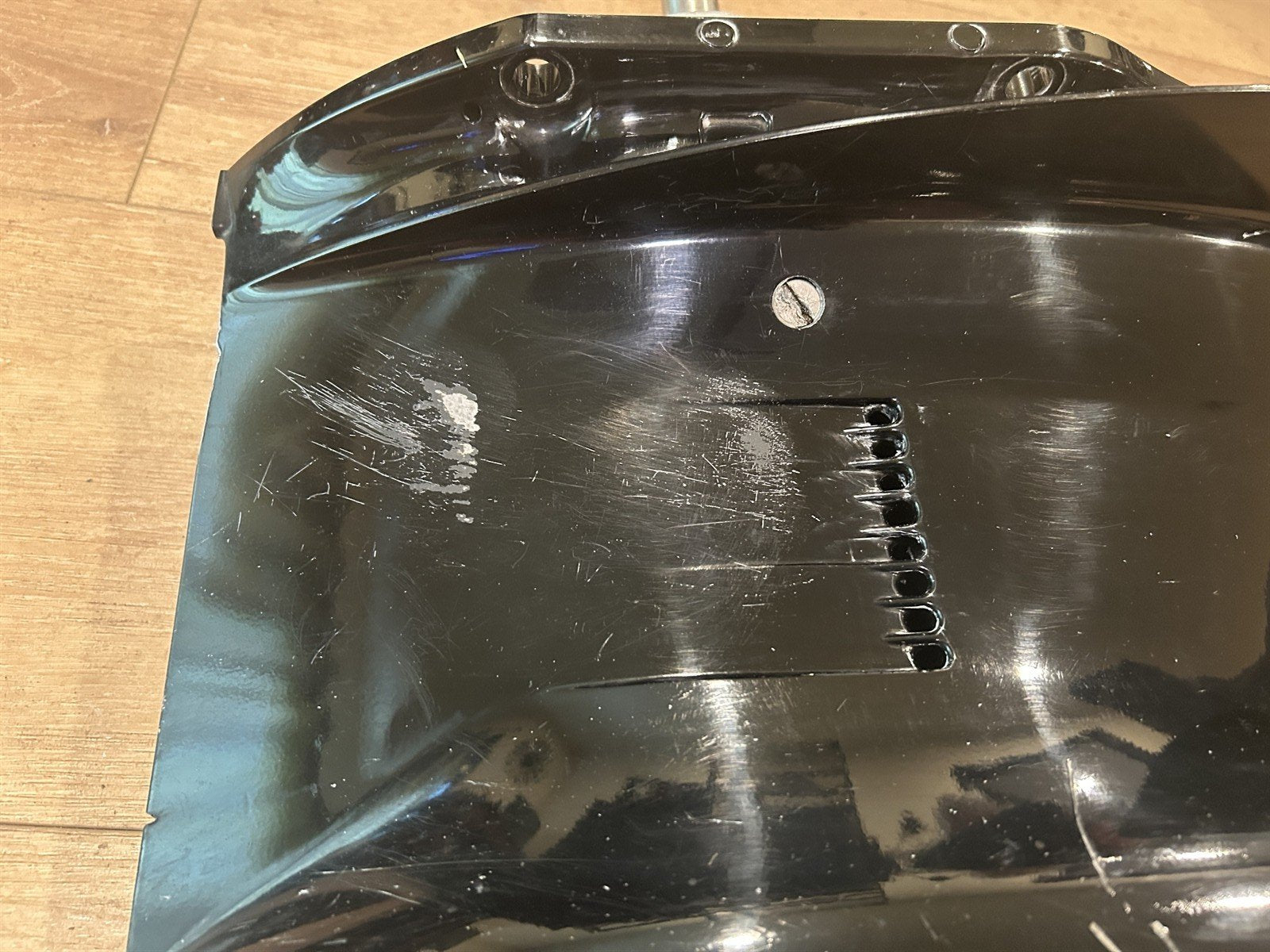

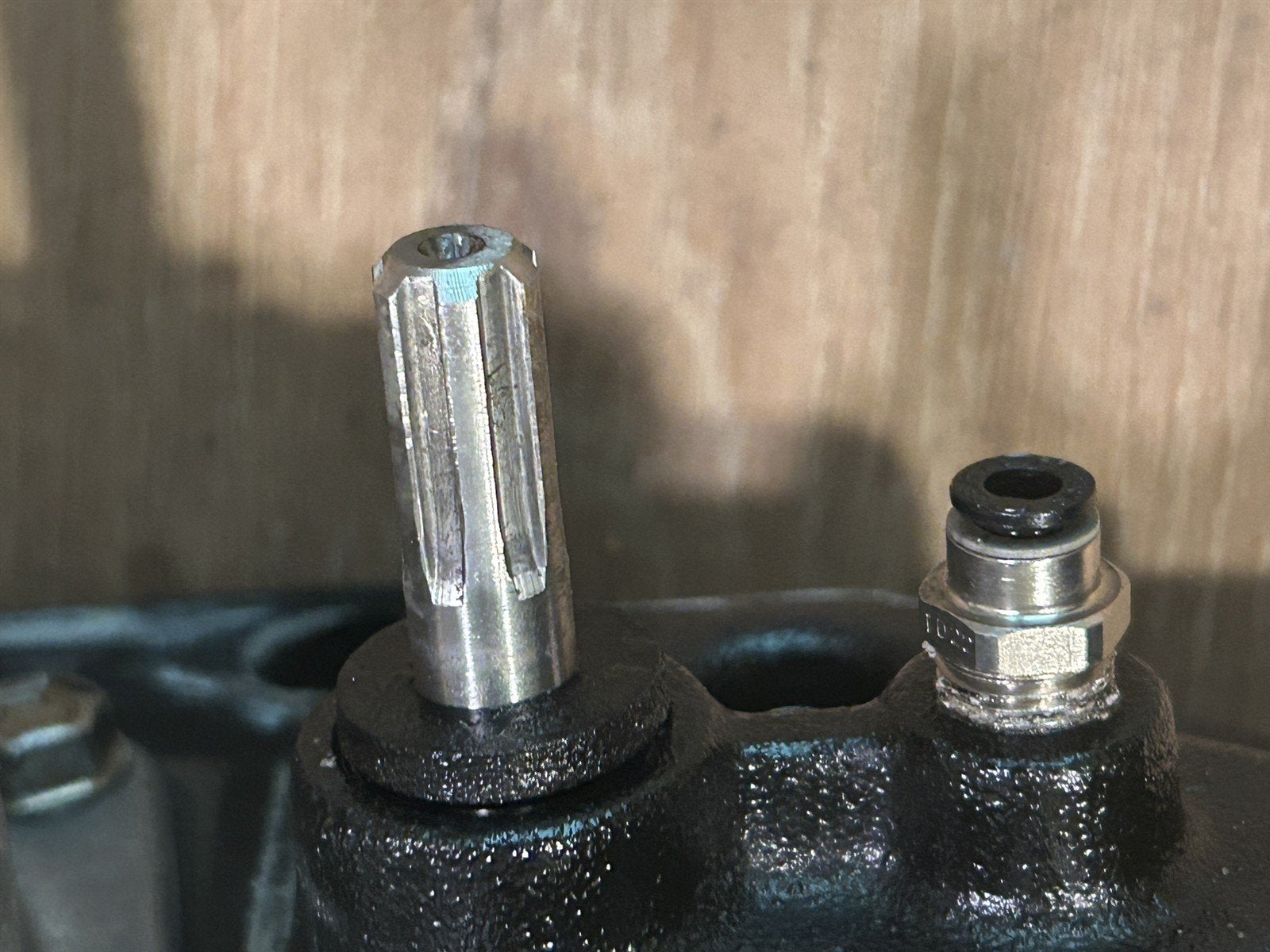

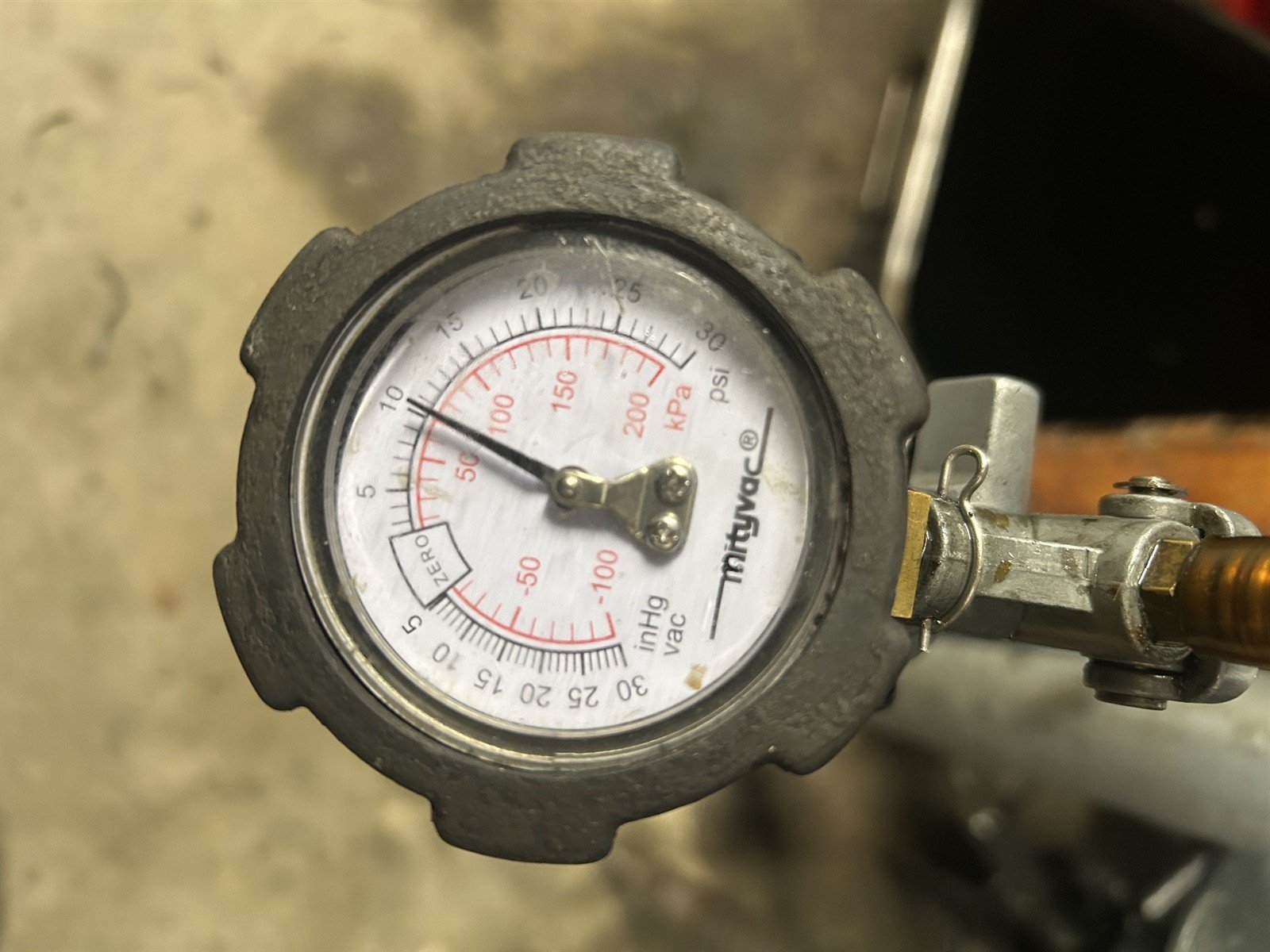

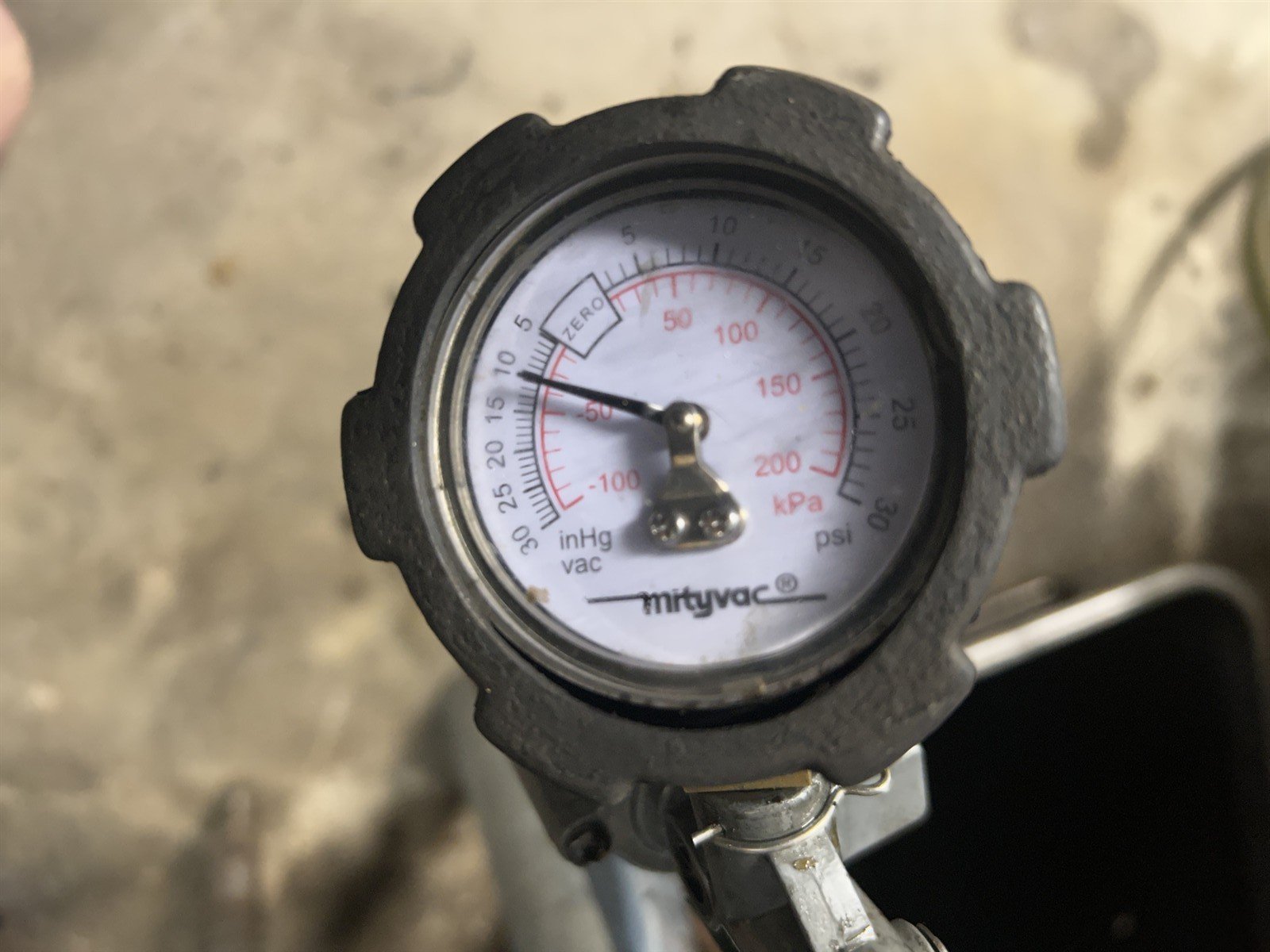

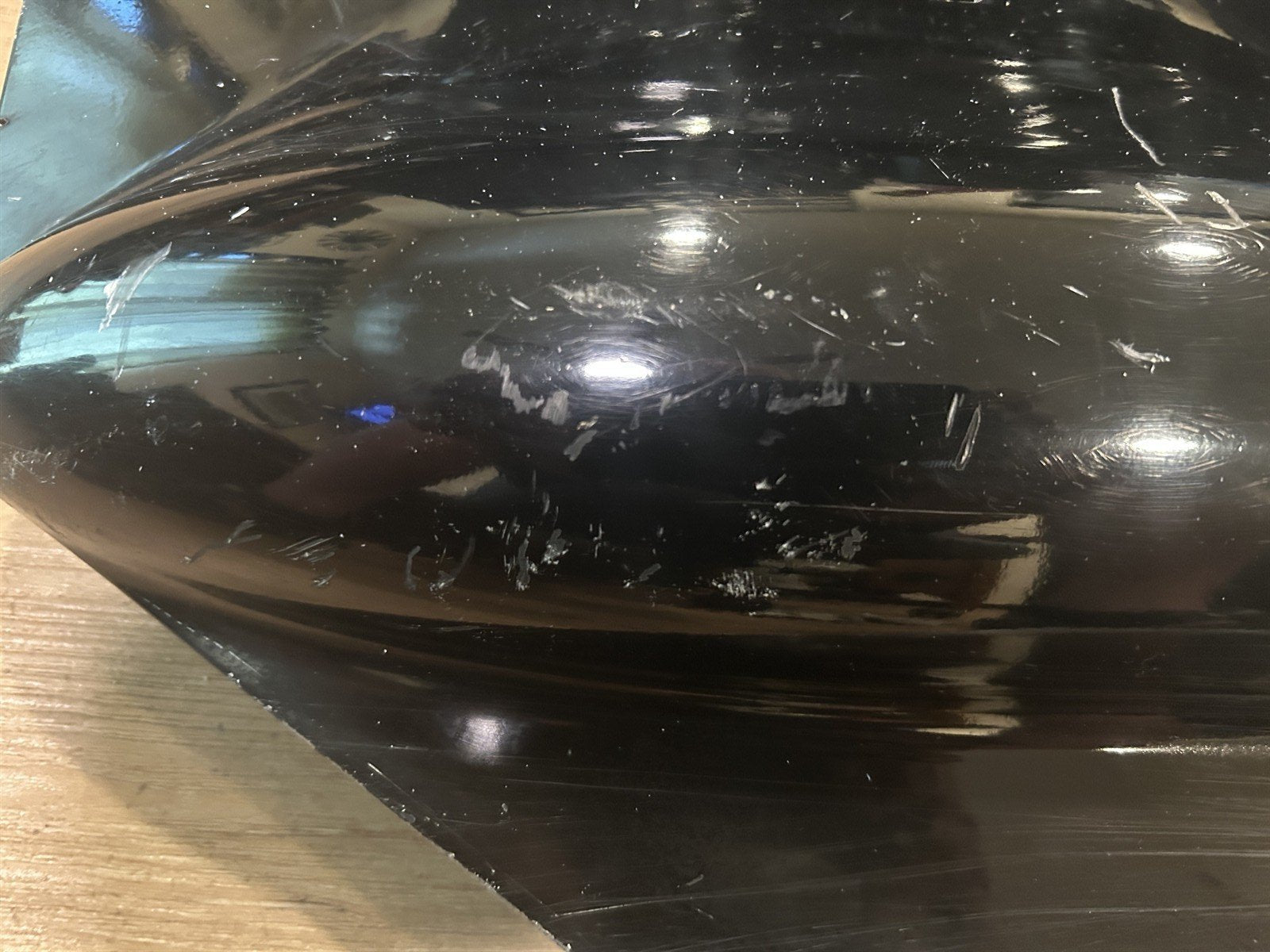

Drained oil for testing, Oil was clean with no water or metal contamination but it did not pass pressure test. It looks like the water pump impeller failed, the engine overheated and locked up and a seal below the water pump came out of the housing. 2 new seals, a new impeller and gaskets fixed the issue with zero drop in both pressure and vacuum tests. All splines in excellent condition. Cavitation plate and skeg are both straight and in very good condition. Small scratches and paint loss but overall appearance is great.

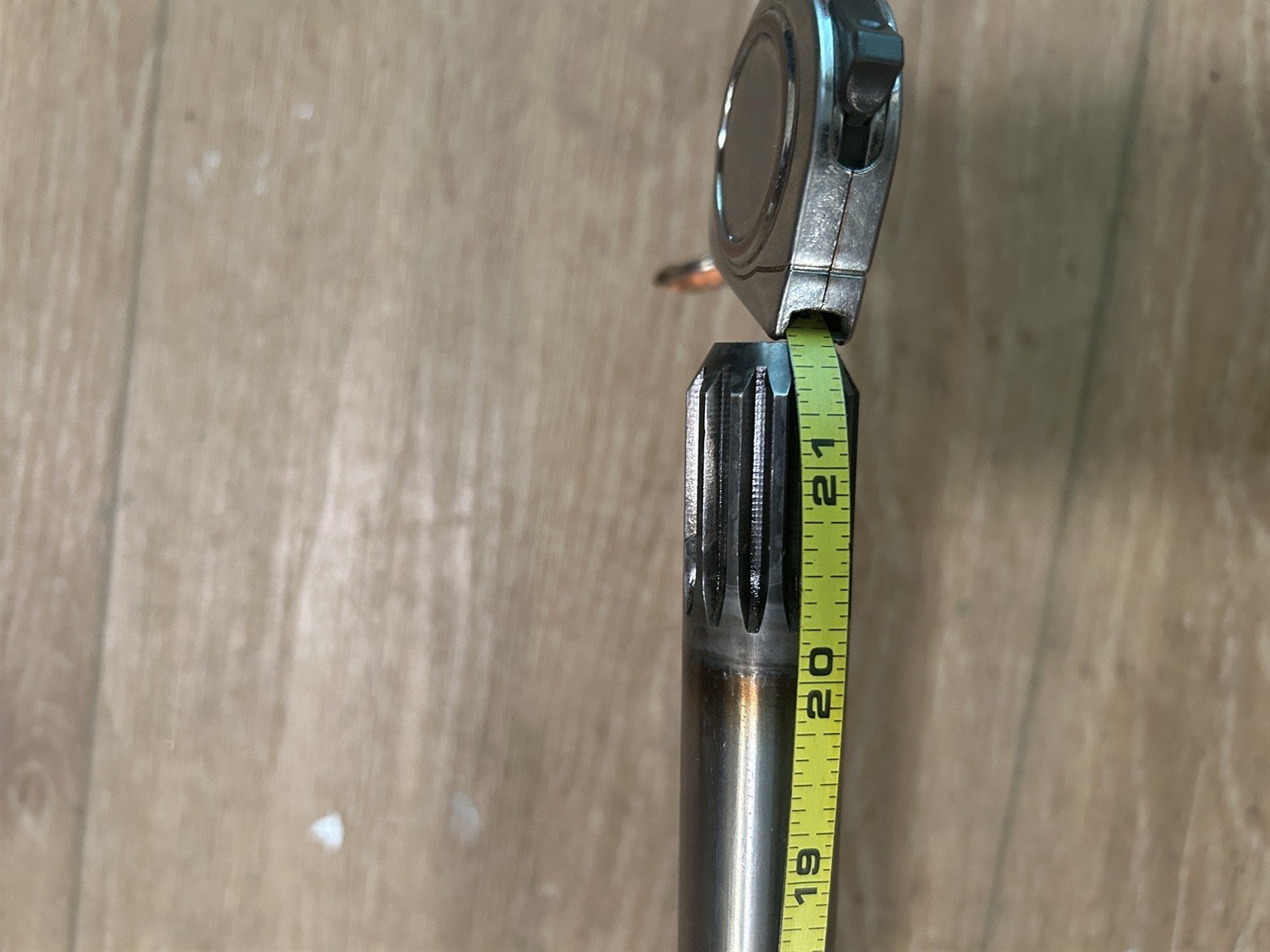

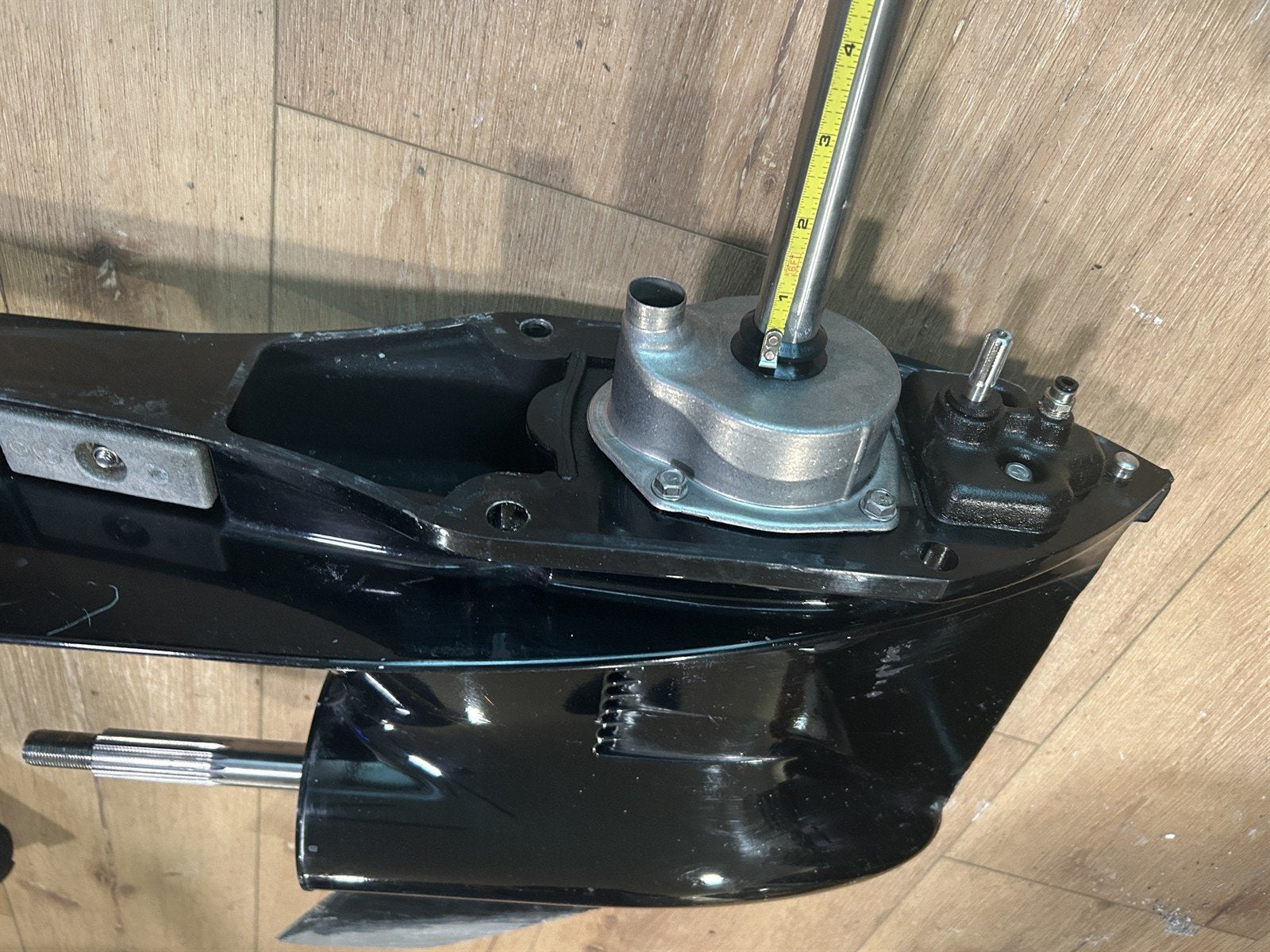

Long shaft motor measuring 21 1/2 " from top of water pump to end of shaft, 20" transom motor. Standard Rotation, 1.75:1 Gear Ratio.
This unit must be filled with gear oil from the bottom up to the vent prior to use. Brand: Mercury Mariner Manufacturer Part Number: 859399A13 Warranty: 30 Day
Condition: Used Condition Description: Very good used condition, passed pressure and vacuum tests with zero drop, all splines in great shape, new impeller and seals below the impeller. Bolt on, fill with oil, ready to go.
PLEASE make sure this will fit your application before buying. If your specific model is not mentioned in this listing, you must check your own fitment.
If you are not sure if the part will work on your motor send us a message. Include the year, horsepower, make, model # and/or serial # of your motor so we can assist you. For Mercury motors we absolutely need your serial number. For Johnson/Evinrude motors we need your model number. If we cannot pull up a parts diagram from the information provided we cannot confirm fitment.
Carefully review each and every photo as they best describe the condition of the item(s) and what is all included in this listing. If something isn't photo'd or mentioned here in the description then it is not included.
